#Test tone network kit generator

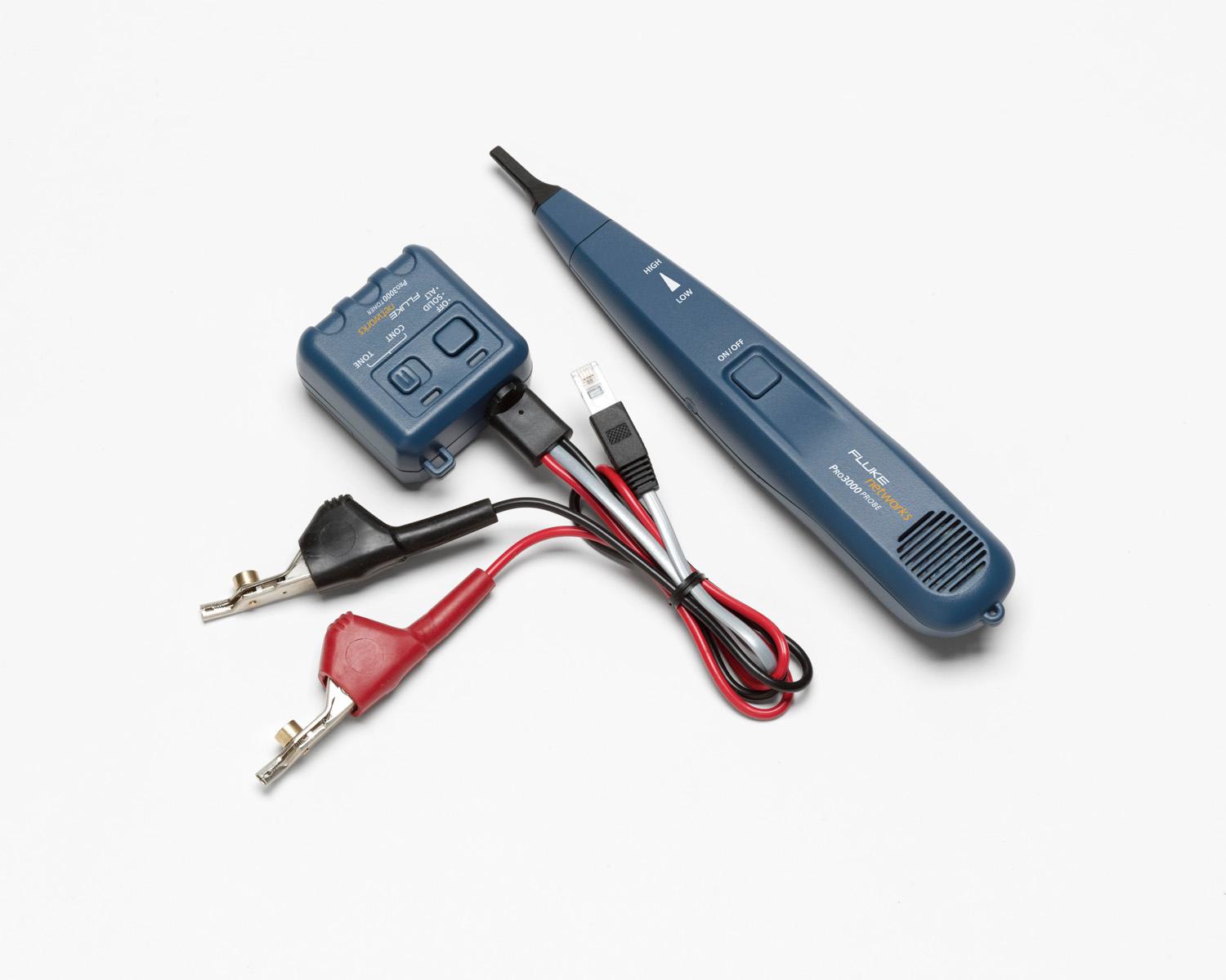

The tone generator has the ability to tone by pin, by pair, or all conductors at once. Toning helps to locate and identify a single cable that is within a bundle of cables. The tone generator has 4 user selectable tones. A built in analog tone generator is also included and can be used in all testing modes.The main remote is stored in the base of the tester when not in use. For all tests, the included main remote (Remote #1) is used to terminate the far end of the cable run.Coax cables are tested for opens and shorts on the pin and shield. Testing is similar to the Data test, but tests up to 6 conductors instead of 8. In Voice mode, the RJ-11/12 port is active.Shield continuity can also be tested on shielded RJ-45 connectors and cables.
Error types are also displayed on the LCD. Test results are displayed on the LCD in a pin-to-pin format.VDV can accurately identify and alert the user to uplink/crossover cables. When the test is activated, VDV checks each conductor of the cable for any opens (unterminated or cut conductors), shorts (cut or nicked conductors that come into contact), miswires (wires out of order – not consistent at both ends), reversals, or split pairs (wired correctly but using wrong conductor order and grouping). In Data mode, the RJ-45 port tests RJ-45 connector cables terminated to Cat 3/5/5e/6/6a twisted pair cables. The LCD display will show “PASS” or “ERROR” after each test, making it easy to see if the cable is terminated correctly. The VDV can test Data/Ethernet RJ-45 (8P8C), Voice/Phone RJ-11/12(6P6C/6P4C) and Video/coax cables. The primary function of the VDV is the wiremap test, which shows pin by pin whether a cable is terminated properly at both ends and if there is continuity from end to end. The IDEAL 33-866 Test-Tone-Trace VDV Kit is an all-in-one basic Voice-Data-Video tester that is perfect for verifying the wiring of low-voltage and data communications cables.
The kit is affordably priced and comes with a carrying case for easy transport and storage.
#Test tone network kit plus
This all-in-one kit combines our popular 33-856 VDV Multimedia Tester and the 62-164 Amplifier Probe, plus several accessories, to provide everything you need for basic testing and toning applications. The IDEAL 33-866 Test-Tone-Trace VDV Kit is the perfect tool for any low voltage, video, or data communications installer.
Voice/Data/Video LCD based wire mapper verifies cable continuity.Test cables, Tone cables, and Trace cables in one kit.
